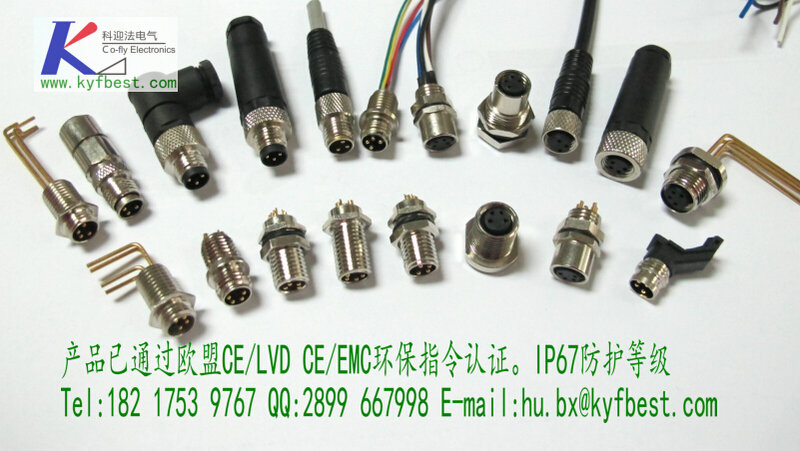

科迎法M8插頭優勢
?產品種類齊全,用途多樣
?品質和專業水平突出,可靠性高
?設備連接解決方案創新、便捷,具備必要的工業應用防護等級
?根據客戶需求定制,靈活性高
?產品專員提供專業設計支持
?特殊外形結構及要求可接受定制
?產品認證資質:CE/LVD、CE/EMC、IP67
適用電纜直徑 |
芯數 |
防差錯編碼 |
額定電流/額定電壓 |
物料號 |
4mm~6mm |
3PIN |
A-Coding |
4A/250V |
KYF8J3ZT-NC(4-6) |
4mm~6mm |
4PIN |
A-Coding |
4A/250V |
KYF84ZT-NC(4-6) |
4mm~6mm |
5PIN |
A-Coding |
4A/125V |
KYF8J5ZT-NC(4-6) |
Automation M8 Connectors
A wide range of metric M8 connectors for small sensors and actuators. Shielded and IP-rated to IP 67, these connectors are ideally suited for industrial control networks where small sensors are required.
Plastic or metal shells
Metal housing with 360° EMI shielding
3 or 4 contacts
Degree of protection IP67
Contacts have screw or solder termination
Kabelsteckverbinder •Schraubverriegelung nach DIN EN 61076-2-106 •Schutzart IP65/IP67) •Am Kabelangespritzte Ausführungen •Einfache Montage •SehrguteEMV Eigenschaften (360°SchutzbeiSchirmring Version) •Ausführungen mitSchirmringen/Irisfeder •Winkelsteckverbinder in 4Positionen einslbar |

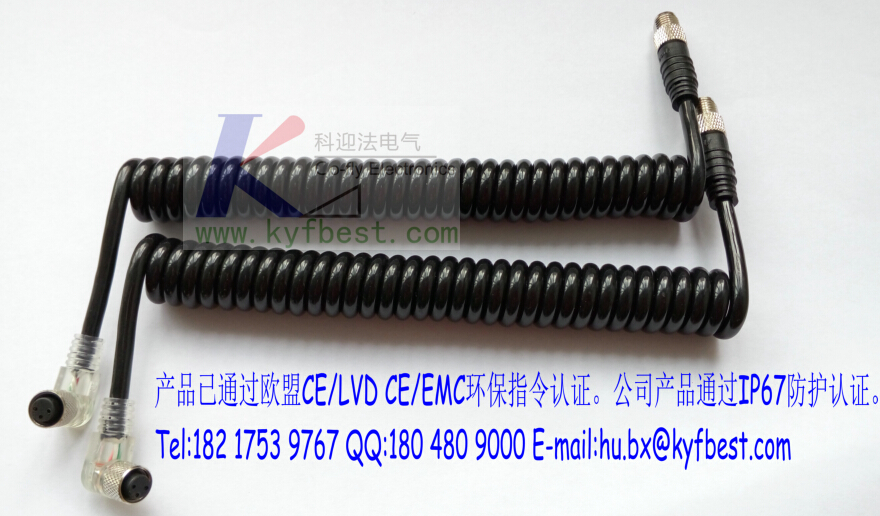

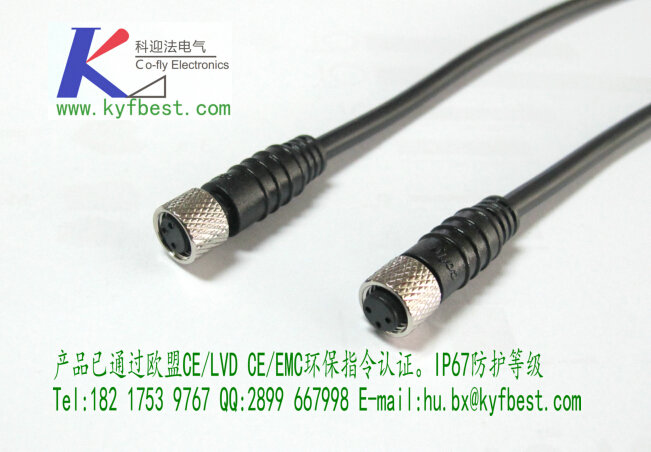

Cable Connectors •Screw lockingaccordingto DIN EN 61076-2-106 •Degreeofprotection IP65/IP67) •Mouldedversions •Easyassembly •ExcellentEMCshielding (versions with shieldingrings360°) •Versions with shieldingrings/iris typespring •Angledconnectoradjustablein 4positions |
Flanschsteckverbinder • Schraubverriegelung nach DIN EN 61076-2-106 •Schutzart IP65/IP67) •Einfache Montage •Löt-/Tauchlötanschluss/Litzen •Verschiedene Bauformen |
Panel Mount Connectors •Screw lockingaccordingto DIN EN 61076-2-106 •Degreeofprotection IP65/IP671) • Easyassembly •Solder/dipsolder termination/single wires •Various variants |
上??朴姎饪萍加邢薰?,專業、專注于電氣連接產品的創新導入、高新高科技產品的營銷、服務、配套的企業,通過了ISO9000國際質量體系認證。型譜系列產品成功取得了歐盟CE認證,質量可靠性與技術標準已達到國際、國內技術先進水平。產品應用與配套,符合ROHS環保原材料,確保了科迎法電氣連接產品綠色性能。管理細節的有效控制,保證了供期的確定性與質量的穩定性。
上??朴姎饪萍加邢薰旧a(chǎn)的產品結構以及性能要求符合歐標工藝,通用性好。咨詢。
